Alufas®

Aluminium composite panels .

Commercial and industrial company Alumax-Dnepr ® LLC is the first Ukrainian manufacturer of Aluminum Composite Panels, which supplied the market under the trademark ALUFAS®. The company was established in 2005. Since 2005, company has shipped 2 million square meters. There are seven regional offices in Ukraine.

The basis of the work of Alumax-Dnepr ® LLC is guaranteed, high quality, timely supply of Aluminum Composite Panels in Ukraine and beyond its borders.
More information about our company.

Product quality is verified by laboratory tests and is certified.

Aluminum composite panels ALUFAS have been tested and have received ISO 9001: 2008, B-s1-dO and a 30-year warranty.

Make an order Presentation of Alufas

ACP ALUFAS:

Designing and fabrication operation of assembly availability (slot milling, rolling and etc.), decorative elements of different and construction.

Consulting assistance as per calculation of facade geometry and interiors.

Avoiding of aluminium composite panels specimen for testing.

Aluminium composite panels on the trademark ALUFAC ® allow you to imploment all variety of the most bold wxterior design solutions thanks to a wide range of colours.

Flavible pricing policy and individual to each customer.

Certificated warranty period to ACP: PVDF with nano-coating - 30 years, PVDF - 25 years, PE with nano-coating - 20 years, PE and decor - 15 years.

High tenacity of panels paintwork.

Production quality according to European industry-specific standards.

Video ACP Alufas

Manufacturing experience and quality from 2006

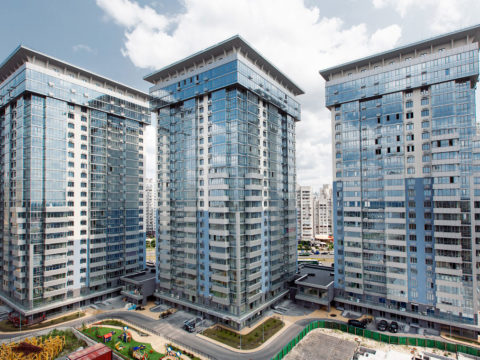

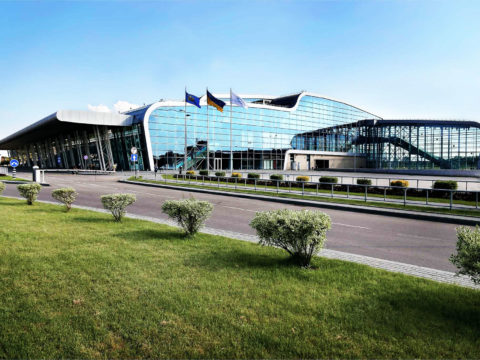

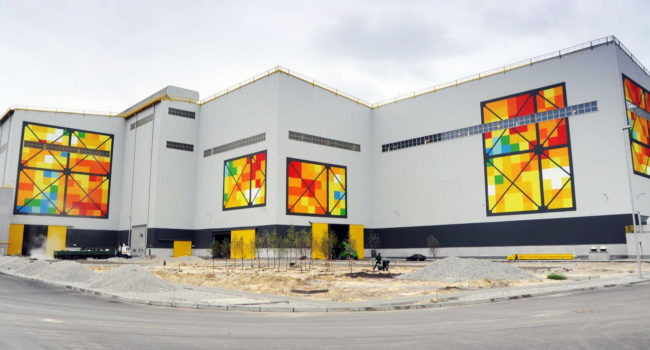

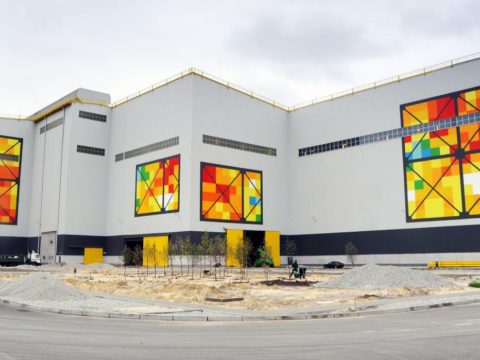

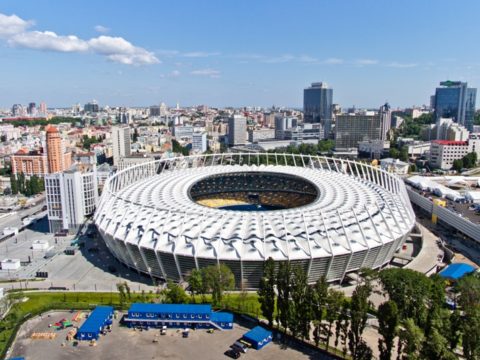

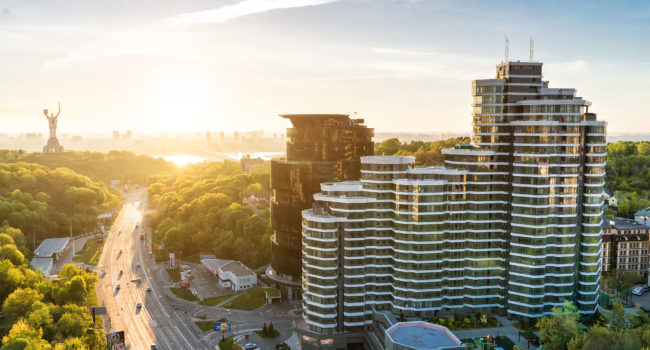

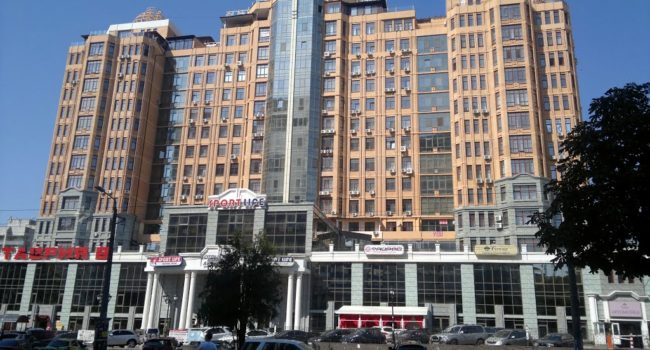

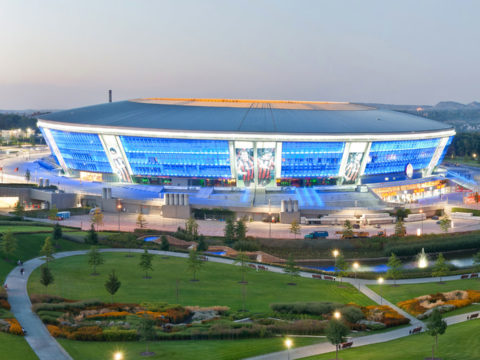

More than 2000+ objects
beyond the 2 000 000 sq.m.
Warranty 30 years
Partners 200+

Production

- NTD DESCRIPTION -

Weight
Thermal expansion coefficient

Binder density

Module of elasticirt E

Moment of inertia

Bending stiffness

Aluminium tensile yield

Relative elongation

Impact strength

Pencil hardness

Thermal stability

Acoustical absorptivity

Heat transfer coefficient

Heat transfer resistance

Boiling water resestance

Acid resistance

Alkali resistance

Hydroscopic property

Adhesion

Aluminum grade

- QUALITY PROFILE -

5,5 kg/m²
0,024 mm/m t° (°C)

0,97 t/m³

70 000 N/mm²

0,306 cm4

4/0,5=2400 kN cm²/m

187 N/mm²

>5%

50 kg/cm

2N

-50°C to +80°C

0,05

5,45 W/m²

0,009 m k/v

without changes within 2h

48 hours 5% HCL (v/v)

48 hours 5% NaOH (m/m)

0,01% (is't hydroscopic)

Class 1

ENAW3003H24

Aluminium composite panels ALUFAS

Aluminium composite panels under trademark ALUFAS consist of two layers of chromate treated aluminum, high-polymeric and high-molecular filler between it. The aluminum alloy ENAW3003 H24 is used for production aluminium composite panels under trademark ALUFAS, which is optimal according to the rigidity and plasticity.
The high quality of ACP ALUFAS surface achieves by means of using polymer coating PVDF, PE, decorative film and nano-coating, what provides weather and industrial pollution resistance, corrosive resistance and protects from fading and abrasive wear.
More information about product.
Technical specifications:
Panel thickness: 3, 4, 5mm
Aluminum layer thickness: 0.21; 0.3; 0.4; 0.5mm
Panel width: 1240mm, 1510mm;
Panel length: according to the Customer requirements.
ACP dimension deviations may be ±0.05mm according to the Technical Specifications of Ukraine B.2.6.-28.1-30431978-001:2007.

Euramax

(Holland)

innovative products on coated aluminium that colours your world
Akzo Nobel Nippon Paint AB and KCC Paints Sdn. Bhd.

(Sweden and Korea)

world leaders in the production of paints and lacquers
KIBAR DIS TICARET and Chinalco Ruimin Co., LTD

(Turkey and Chine)

are the suppliers of aluminum, which guarantee compliance with the alloy, grade and thickness of aluminum
SUNSIN SURFACE SCIENCE CO., LTD

(Korea)

is the supplier of decorative film
